How Do You Test a Coil on a Lawn Mower: Expert Tips
Testing a coil on a lawn mower is not hard. You can do it. This guide will show you how.
What is a Coil?
A coil is a part in the lawn mower engine. It helps start the engine. It creates a spark. This spark ignites the fuel. Then the engine runs.
Why Test the Coil?
If the lawn mower won’t start, the coil might be bad. Testing the coil can help you find the problem. If the coil is bad, it needs to be replaced.
Tools You Need
- Multimeter
- Screwdriver
- Wrench
- Safety gloves
Credit: pushmowerrepair.com.au
Steps to Test a Coil
1. Safety First
Wear safety gloves. Make sure the lawn mower is off. Remove the spark plug wire. This prevents the engine from starting.
2. Locate The Coil
The coil is near the flywheel. The flywheel is at the top of the engine. You may need to remove the engine cover. Use a screwdriver or wrench.
3. Disconnect The Coil
Find the wires connected to the coil. Remove them carefully. Note where each wire goes. This helps when you reconnect them.

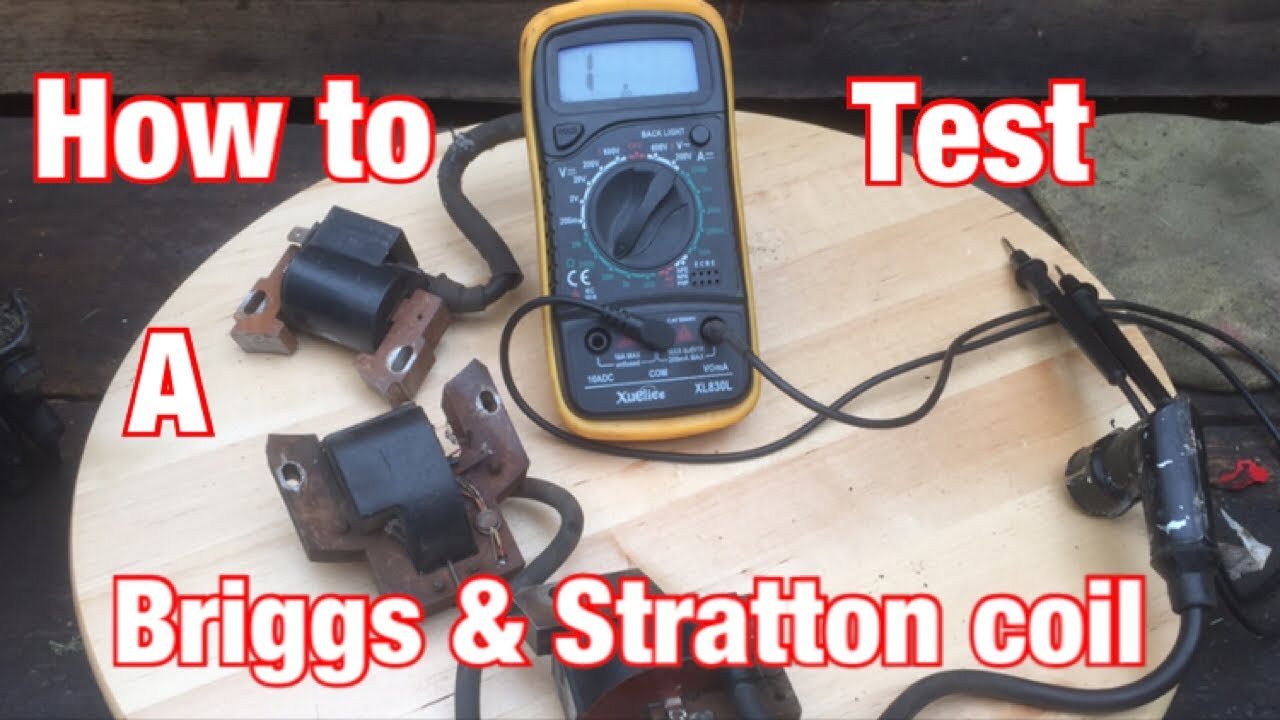

4. Set The Multimeter
Set your multimeter to Ohms. Ohms measure resistance. This will help test the coil.
5. Test The Primary Coil
Touch the multimeter leads to the coil terminals. The reading should be low. Between 0.4 and 2 ohms is normal.
6. Test The Secondary Coil
Touch one lead to the coil terminal. Touch the other to the spark plug boot. The reading should be higher. Between 6,000 and 12,000 ohms is normal.
7. Check The Readings
If the readings are outside the ranges, the coil is bad. You need to replace it. If the readings are within range, the coil is good.
8. Reconnect The Coil
Reconnect the wires to the coil. Make sure they are in the right place. Tighten the connections.
9. Replace The Engine Cover
Put the engine cover back on. Use the screwdriver or wrench. Make sure it is tight.
10. Test The Lawn Mower
Reconnect the spark plug wire. Try to start the lawn mower. If it starts, you are done. If not, there may be another problem.
Common Problems and Solutions
Sometimes the coil is not the issue. Here are some other things to check:
- Check the spark plug. It may be dirty or damaged.
- Check the fuel. Make sure there is enough fuel in the tank.
- Check the air filter. It may be clogged.
- Check the battery. It may need to be charged or replaced.
Credit: www.youtube.com
Frequently Asked Questions
What Tools Do I Need To Test A Lawn Mower Coil?
You need a multimeter and a spark tester for testing a coil.
How Do I Check For Spark On A Lawn Mower?
Use a spark tester. Attach it to the spark plug and pull the starter rope.
Can A Bad Coil Cause A Lawn Mower Not To Start?
Yes, a bad coil can prevent the lawn mower from starting due to lack of spark.
How Do I Test A Lawn Mower Coil With A Multimeter?
Set the multimeter to ohms. Measure resistance between the coil terminals.
What Resistance Should A Good Lawn Mower Coil Have?
A good coil typically shows resistance between 2,500 and 5,000 ohms.
How Can I Tell If My Lawn Mower Coil Is Bad?
No spark during testing or incorrect resistance indicates a bad coil.
Conclusion
Testing a coil on a lawn mower is simple. Follow these steps. Use the right tools. You can find the problem. Fix it. Your lawn mower will run again.
